PVC Plastic Pipe Producing Line

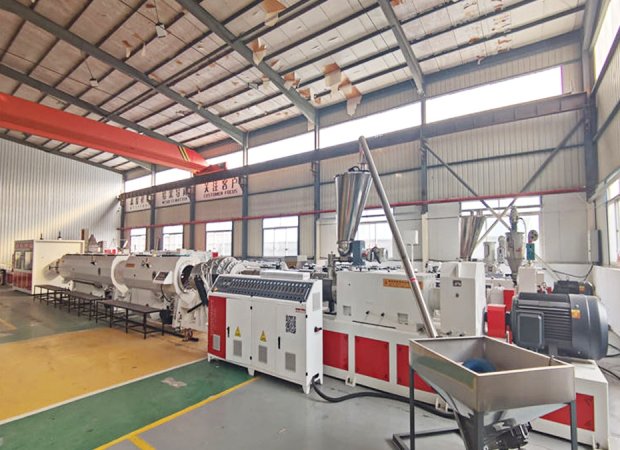

THE WHOLE PVC PIPE PLASTIC EXTRUSION MACHINERY LINE

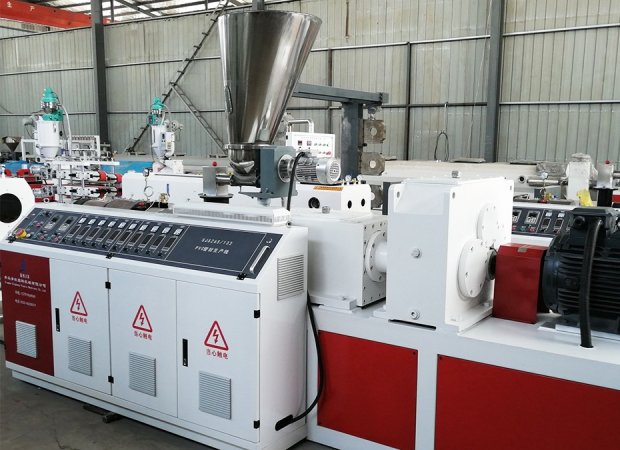

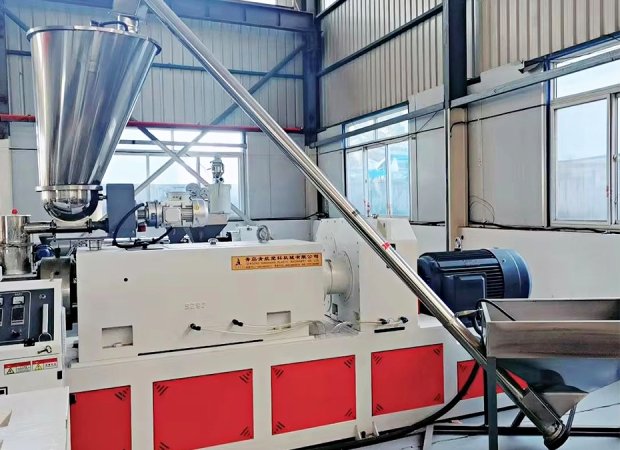

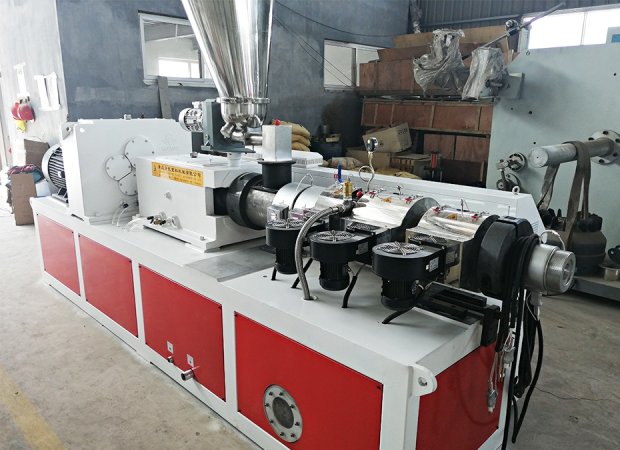

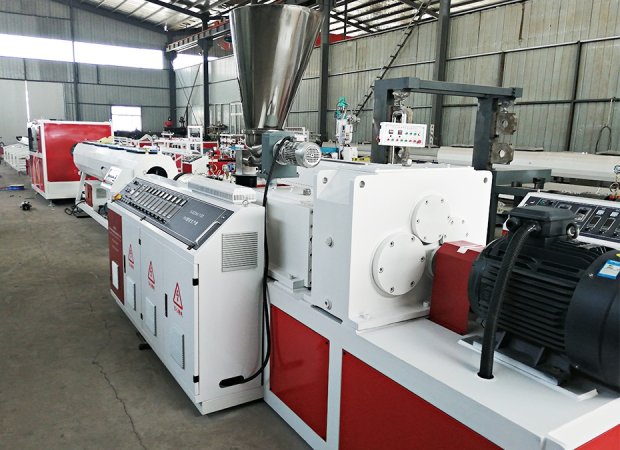

DOUBLE-SCREW EXTRUDER

The conical twin screw extruder has the characteristics of uniform plasticization and mixing, high yield, stable quality, wide adaptability, long service life, and direct molding of PVC powder.

The conical twin screw extruder has stable performance and can effectively plasticize and extrude the melt at lower temperatures. The barrel is equipped with a cast aluminum heater, which has high thermal efficiency, fast and uniform temperature rise, and is equipped with a cooling fan.

DIE HEAD & MOULD & SIZING SLEEVE

The function of die head and mould is to further compact and plasticize the plasticized melt, which enters the annular cross-section flow channel after diversion and is cooled and shaped into a tube blank.

We can customize mold and sizing sleeve size according to customer requirements.

VACUUM WATER COOLING TANK

By using the same die head and model, different diameter pipes can be obtained by selecting different diameter sizing sleeves and controlling the vacuum degree to expand and shrink the pipe blank.

TRACTION MACHINE

For different diameter pipes and extrusion speed requirements, we have developed various traction machines, including 2 track traction machines, 3 claw traction machines, 4 claw traction machines, 6 claw track traction machines, and etc.

The traction machine has a wide adjustable range, stable and reliable operation, and low noise.

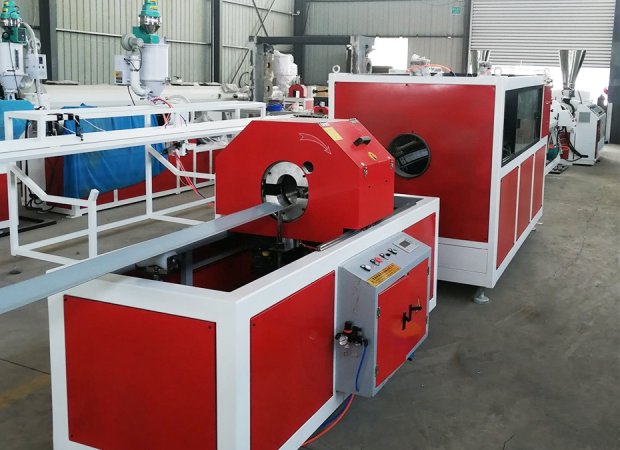

DUST-FREE CUTTING MACHINE

The characteristics of dust-free cutting machines include no chips, no noise, low power, and other advantages.

Energy saving, no waste of raw materials, and low cost. The end face of the pipe cutting is smooth and vertical.

AUTOMATIC UNLOADING RACK

The length of rack is 4m or 6m according to pipe size.

Table made of stainless steel.

Unloading method: pneumatic.
