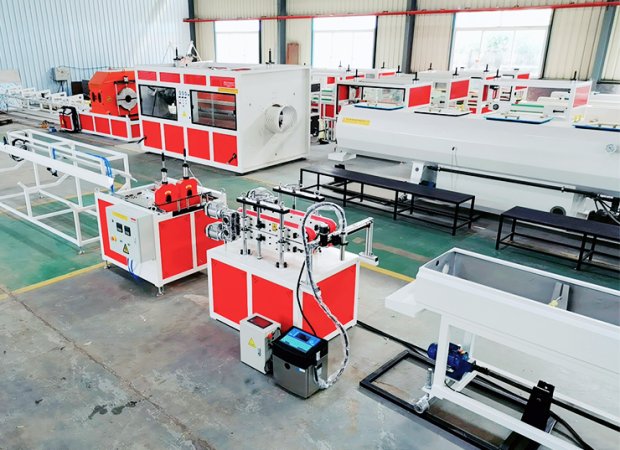

High-Speed PVC Double Pipe Production Line – Efficient Solution for Small-Diameter Conduits

1.Overview

Model: QH-PVC-2P Series

Pipe Diameter: 16mm–63mm × 2 pipes

Raw Material: Rigid PVC (UPVC)

Output Capacity: Up to 250 kg/h

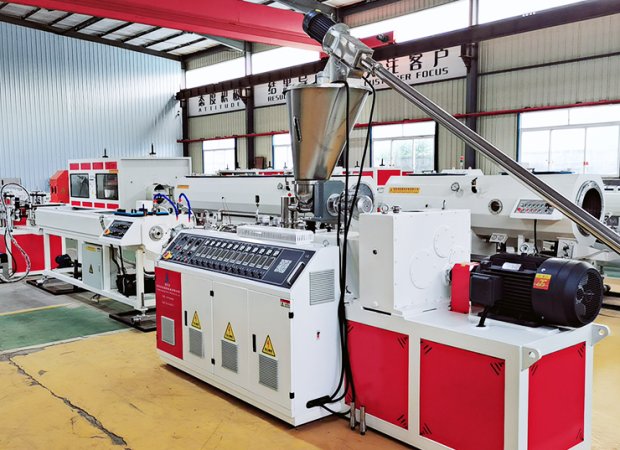

Extruder Type: Conical Twin-Screw Extruder

Mould Type: Double-outlet Pipe Die Head

Applications: Electrical conduit, cable protection, water supply

Cutting Unit: Synchronized Chip-Free Cutter

Control System: Siemens PLC + Touchscreen

Automation Level: Full automatic with stacking unit

PVC Double Pipe Production Line is configured for simultaneous extrusion of two PVC conduits, reducing floor space and increasing output efficiency.

Fast ROI solution for high-volume small-diameter pipe production – Get your quote now!

2.Key Features

• Double Output Efficiency: Produce 2 pipes at once, doubling your output without doubling space or labor.

• Stable Extrusion: Conical twin-screw extruder provides excellent plasticizing and extrusion stability.

• Precision Moulding: Special double-outlet die head ensures uniform pipe wall thickness and roundness.

• Accurate Cutting: Chipless cutter ensures clean, dust-free pipe ends and synchronizes perfectly with line speed.

• Space-Saving Design: Compact layout fits factory space efficiently, reducing overall footprint.

• User-Friendly Interface: Siemens PLC control with touch screen allows real-time adjustment and alarm monitoring.

3.Typical Applications

• Electrical cable protection conduit

• Home and industrial water supply lines

• Agricultural irrigation systems

• Telecommunication duct systems

• Building construction piping

4.Why Choose QH Machinery?

• Over 15 years of professional experience in PVC pipe machinery

• CE & ISO-certified factory with rigorous quality inspection

• Proven performance in over 50 countries worldwide

• Customizable moulds and dies according to pipe specifications

• Professional team for installation, commissioning, and after-sales support
