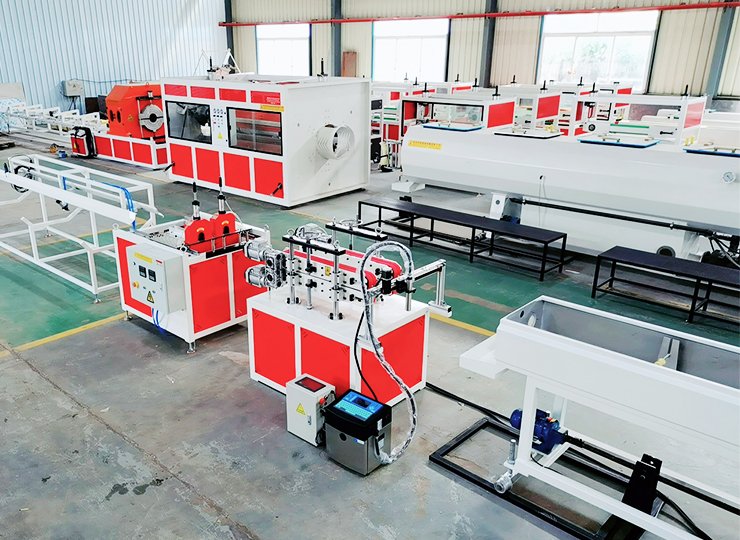

Highly efficient PVC Pipe Extrusion Line

1.Overview

Model: QH-PVC-2P Series

Pipe Diameter: 16mm–63mm × 2 pipes

Raw Material: Rigid PVC (UPVC)

Output Capacity: Up to 250 kg/h

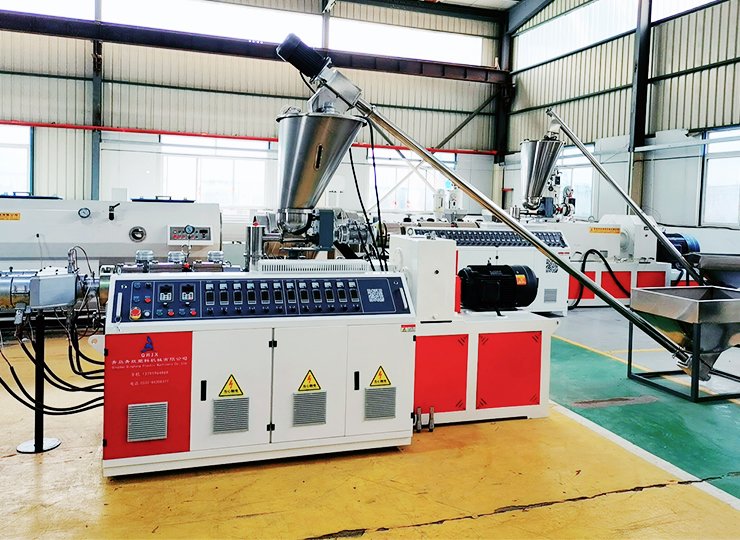

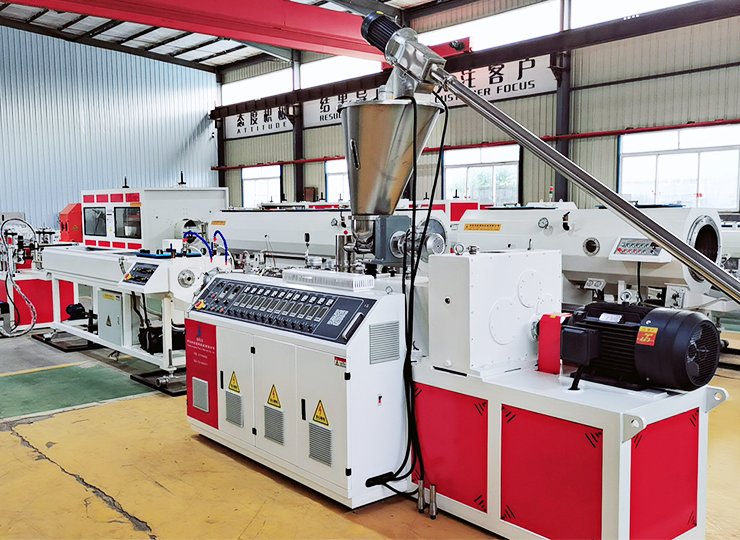

Extruder Type: Conical Twin-Screw Extruder

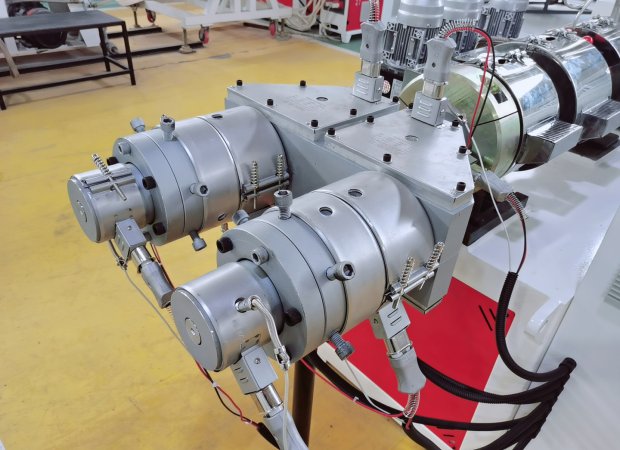

Mould Type: Double-outlet Pipe Die Head

Applications: Electrical conduit, cable protection, water supply

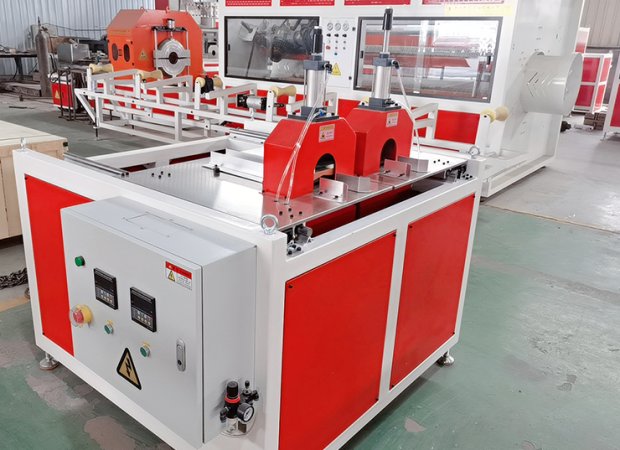

Cutting Unit: Synchronized Chip-Free Cutter

Control System: Siemens PLC + Touchscreen

Automation Level: Full automatic with stacking unit

Fast ROI solution for high-volume small-diameter pipe production – Get your quote now!

2.Key Features

• Double Output Efficiency: Produce 2 pipes at once, doubling your output without doubling space or labor.

• Stable Extrusion: Conical twin-screw extruder provides excellent plasticizing and extrusion stability.

• Precision Moulding: Special double-outlet die head ensures uniform pipe wall thickness and roundness.

• Accurate Cutting: Chipless cutter ensures clean, dust-free pipe ends and synchronizes perfectly with line speed.

• Space-Saving Design: Compact layout fits factory space efficiently, reducing overall footprint.

• User-Friendly Interface: Siemens PLC control with touch screen allows real-time adjustment and alarm monitoring.

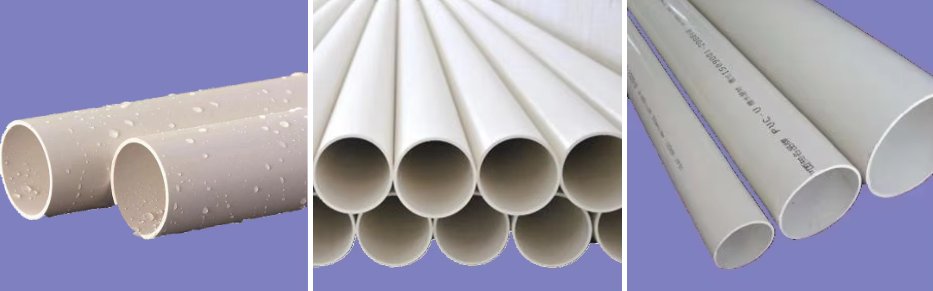

3.Typical Applications

• Electrical cable protection conduit

• Home and industrial water supply lines

• Agricultural irrigation systems

• Telecommunication duct systems

• Building construction piping

4.Why Choose QH Machinery?

• Over 15 years of professional experience in PVC pipe machinery

• CE & ISO-certified factory with rigorous quality inspection

• Proven performance in over 50 countries worldwide

• Customizable moulds and dies according to pipe specifications

• Professional team for installation, commissioning, and after-sales support
