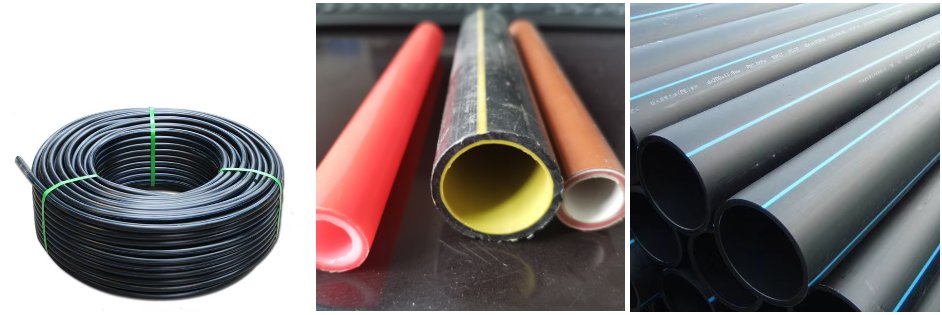

This production line can be used to produce a variety of pipes. The applicable raw materials are PP, HDPE, PPR, ABS, PERT and etc.
It produces single color pipe by monochrome extruder, while multilar pipe by multiple extruder and co-extrusion die head and mould. it also can be used to produce big diameter pipe, such as water supply pipe and gas pipe.
For the original laying of cement pipes, cast iron pipes and other old pipes in the city, the PE pipe can be directly inserted into the old pipe for replacement without large-scale excavation, the project cost is low, the construction time is short, and it is especially suitable for the pipeline reselection in the old city.

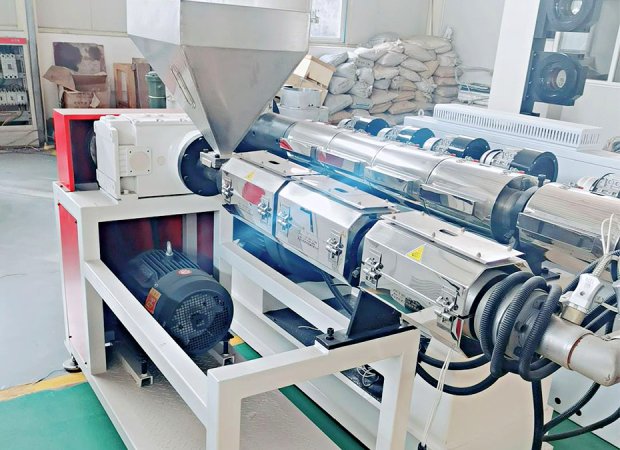

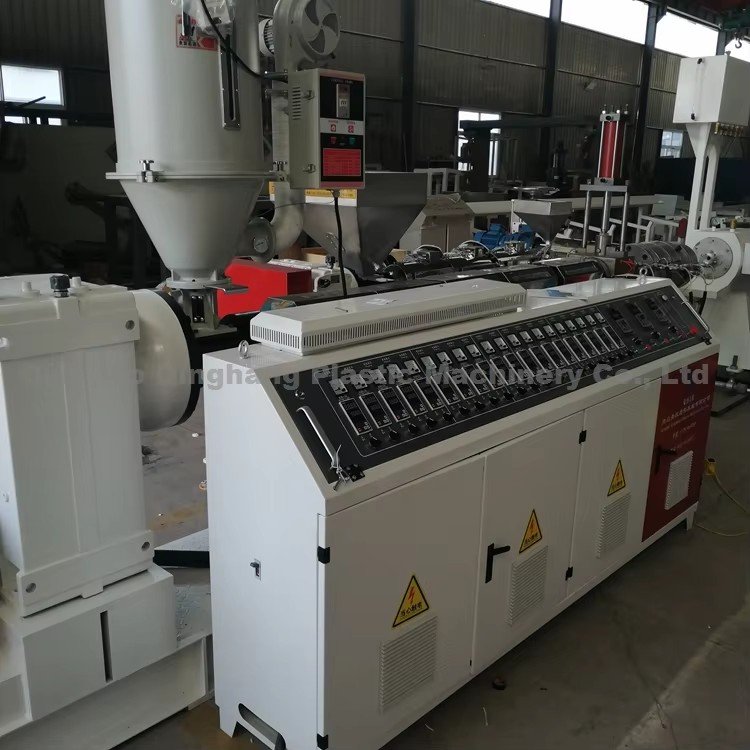

SINGLE-SCREW EXTRUDER

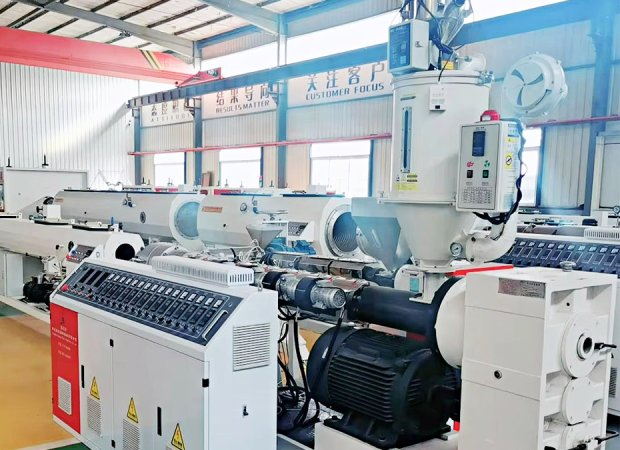

The high-efficiency single screw extruder adopts a two-stage overall design, strengthening the plasticizing function, ensuring high-speed, high-performance, and stable extrusion. The special barrier comprehensive mixing design ensures the mixing effect of the material, and the high shear and low melting plasticizing temperature ensures the high-performance, low-temperature, and low-pressure metering extrusion of the material.

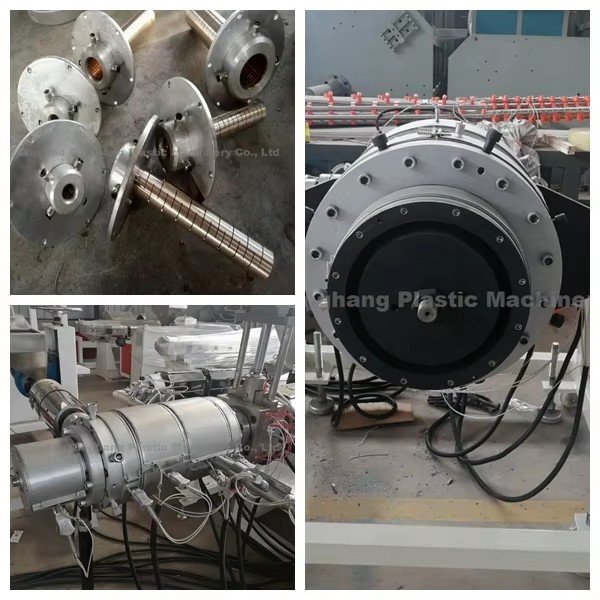

DIE HEAD & MOULD & SIZING SLEEVE
The function of die head and mold is to further compact and plasticize the plasticized melt, which enters the annular cross-section flow channel after diversion and is cooled and shaped into a tube blank.
We can customize mold and sizing sleeve size according to customer requirements.

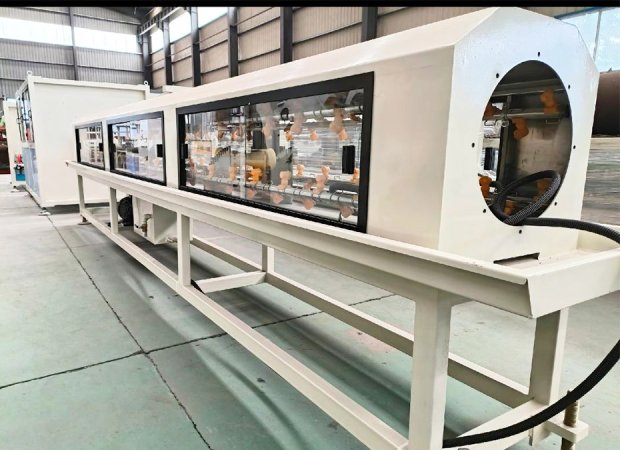

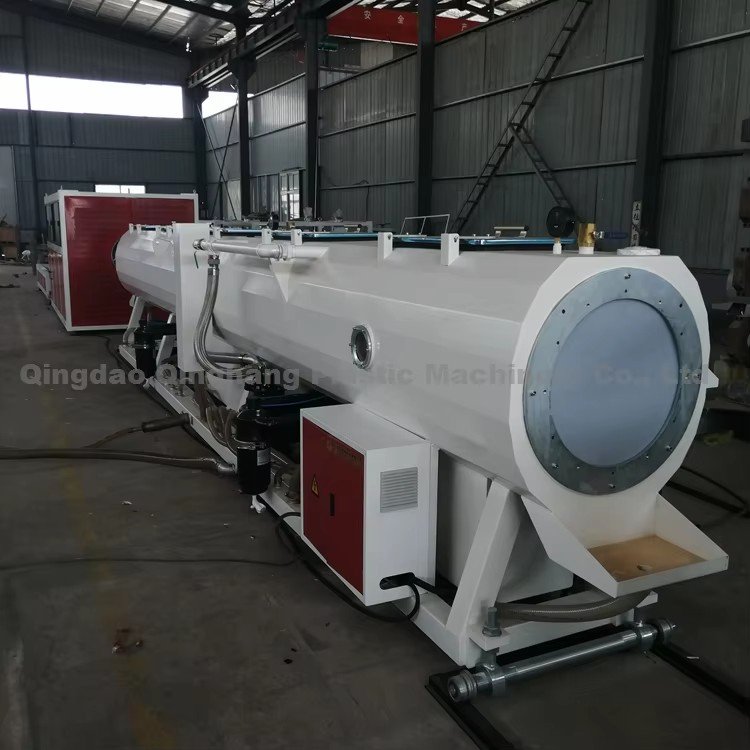

VACUUM WATER COOLING TANK
By using the same die head and model, different diameter pipes can be obtained by selecting different diameter sizing sleeves and controlling the vacuum degree to expand and shrink the pipe blank.

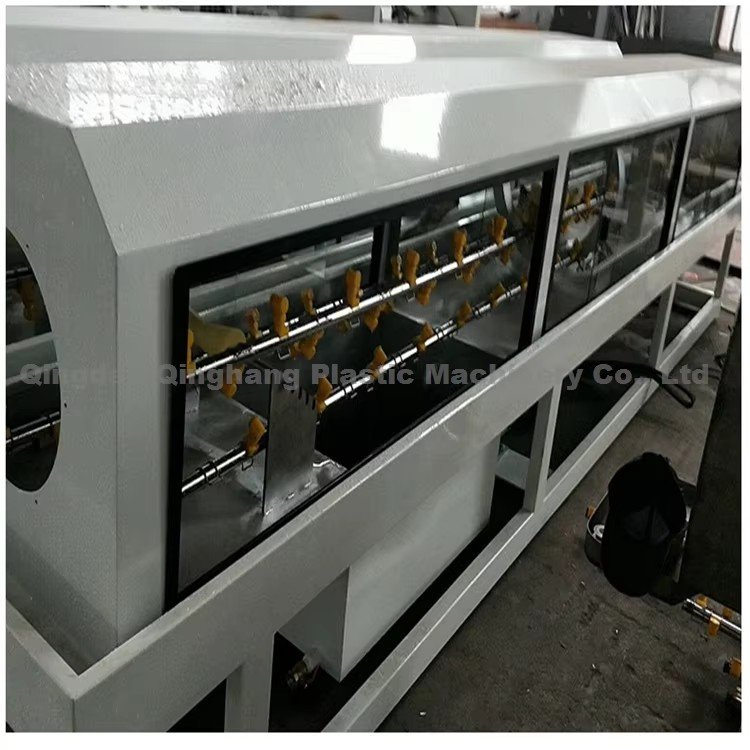

WATER COOLING TANK
By using a spray cooling box equipped with an inlet pipe, a first connecting pipe, and a second connecting pipe, combined with a rotating cylinder, nozzle, gear, and tooth, the rotating cylinder can rotate and spray water evenly, improving the spraying efficiency of the device and making it convenient to use.
It can further cool the tube blank to shape it.

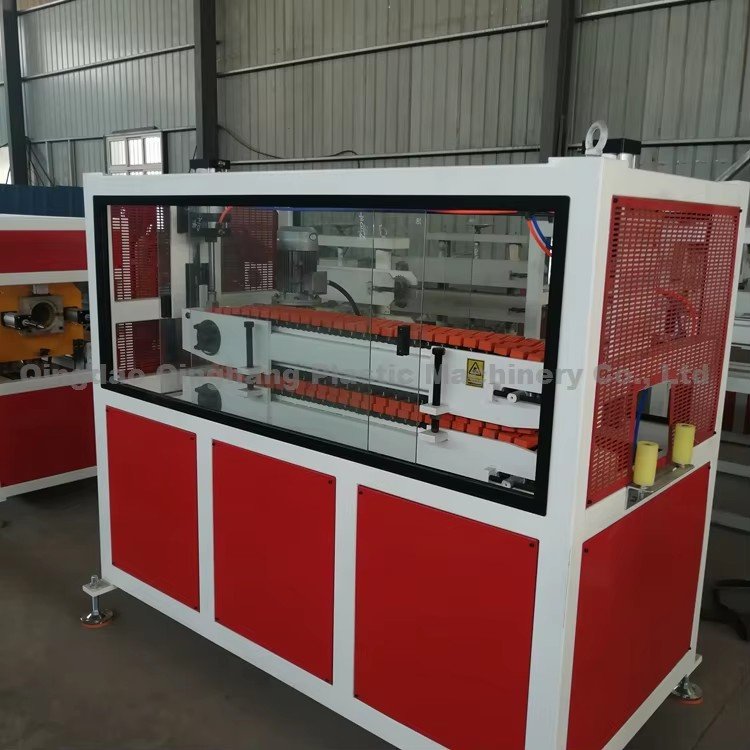

TRACTION MACHINE
For different diameter pipes and extrusion speed requirements, we have developed various traction machines, including 2 tracks.Traction machines, 3 claw traction machines, 4 claw traction machines, 6 claw track traction machines, and etc.
The traction machine has a wide adjustable range, stable and reliable operation, and low noise.

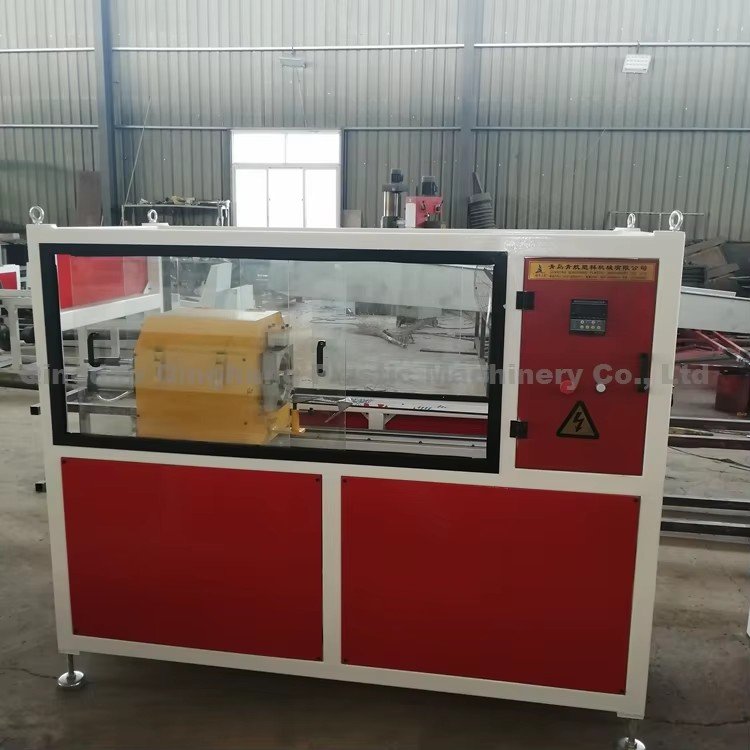

CUTTING MACHINE
The characteristics of dust-free cutting machines include no chips, no noise, low power, and other advantages.
Energy saving, no waste of raw materials, and low cost. The end face of the pipe cutting is smooth and vertical.

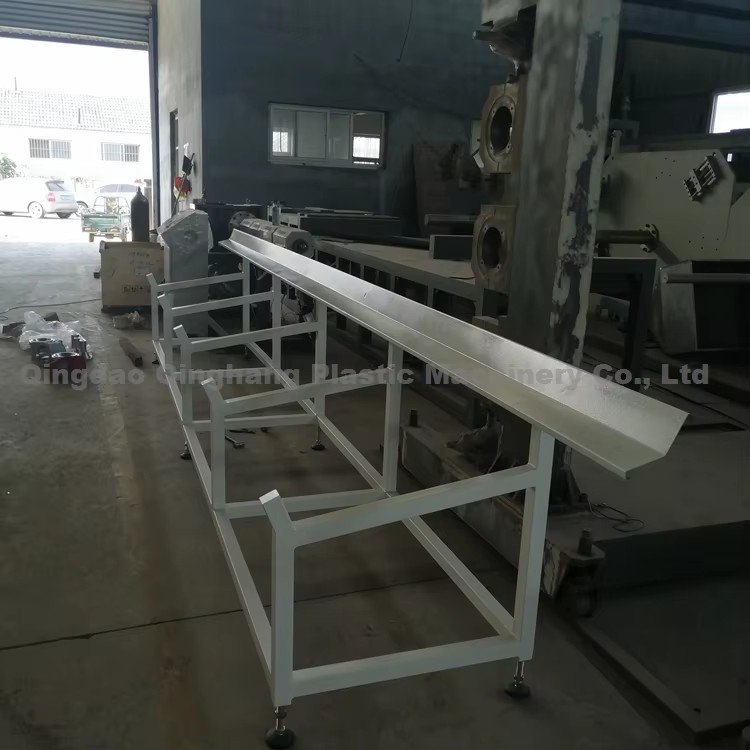

AUTOMATIC UNLOADING RACK
The length of rack is 4m or 6m according to pipe size.
Table made of stainless steel.
Unloading method: pneumatic

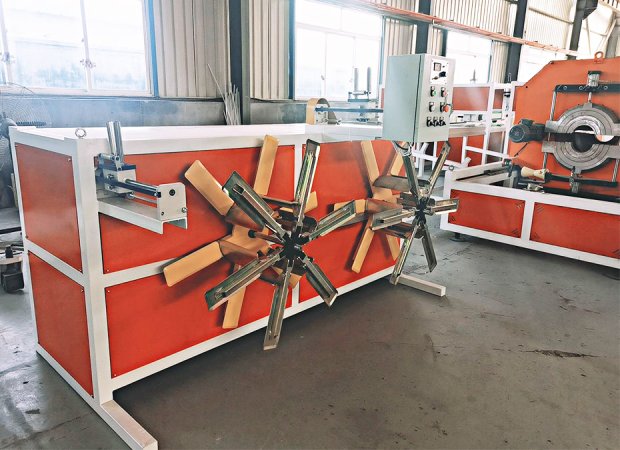

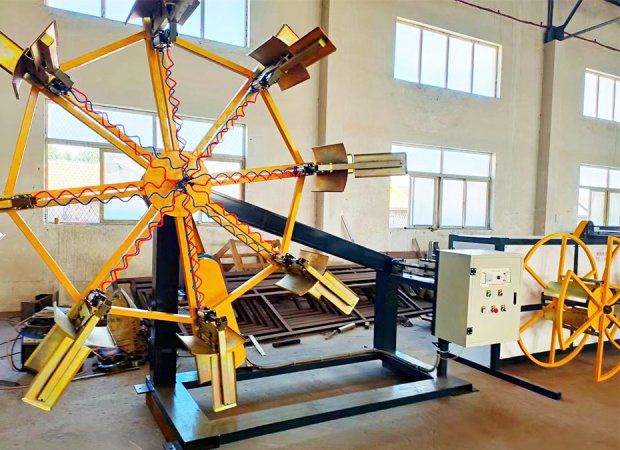

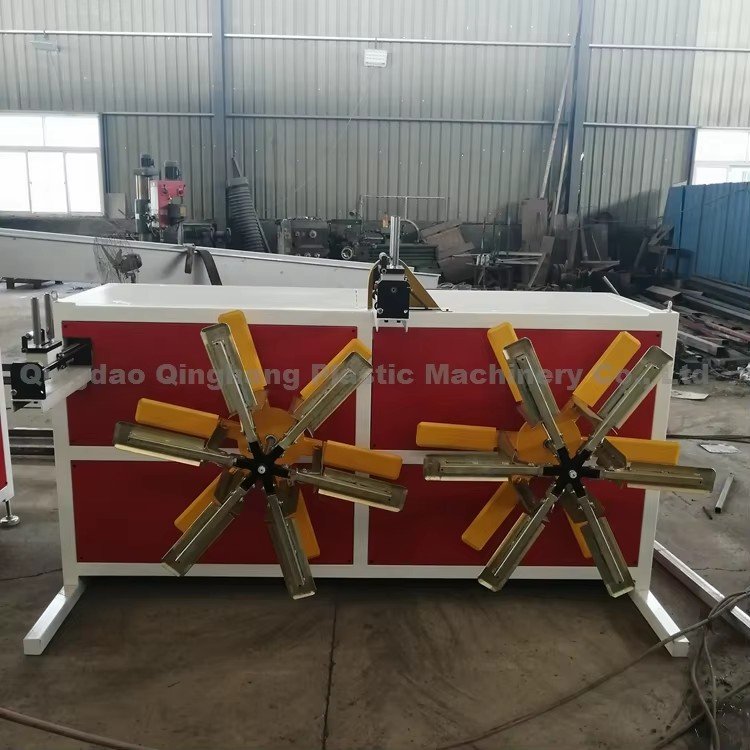

WINDING MACHINE
It is used in conjunction with the pipe production line produced by our factory to achieve online automatic winding.
It can be rolled online and arranged neatly. It can be fully digitized by a computer, with a PLC integrated control system or a light rod cable arrangement mechanism. There are two types, single station and dual station.
