HDPE/PP/PE Pipe Extrusion Line

Product Description:

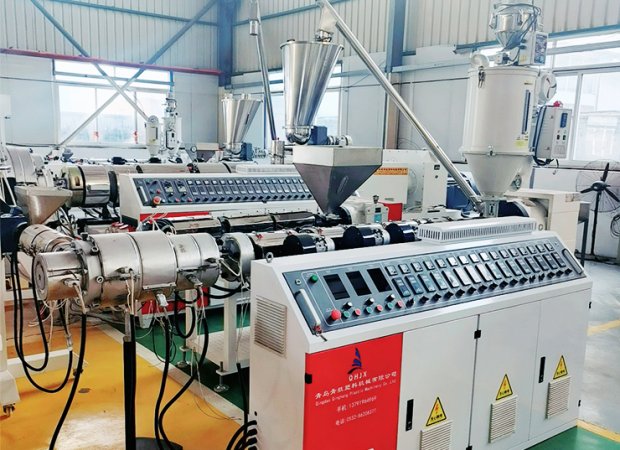

Designed for efficient plastic pipe manufacturing, the HDPE/PP/PE Pipe Extrusion Line features a high-efficiency single-screw extruder with an optimized screw to maintain consistent extrusion output.

Model: QH-HDPE Series

Pipe Diameter: 16mm – 1200mm

Materials Supported: HDPE / LDPE / PP / PE

Output Capacity: 150 – 1200 kg/h

Line Speed: Up to 25 m/min (based on pipe size)

Control System: Siemens PLC + HMI Touchscreen

Cooling System: Vacuum calibration tank + spray cooling tanks

Cutter Type: Planetary / Chipless / No-dust cutter

Applications: Water supply, gas pipelines, cable conduit, irrigation

Get in touch for a turnkey extrusion solution tailored to your needs!

Add To Cart Inquire Now

Product Details

1.Product Overview

Our HDPE/PP/PE Pipe Extrusion Line is built to produce high-quality plastic pipes used in water supply,

gas transportation, cable protection, and agricultural irrigation systems. The line features advanced automation,

high-output extruders, and precise temperature control to ensure stable, continuous production.

2.Key Features

• Wide Diameter Range: Supports pipe production from 16mm to 1200mm.

• Multiple Material Support: Compatible with HDPE, LDPE, PE, PP, and blended formulas.

• Stable Extrusion Performance: High-efficiency single-screw extruder with optimized screw design.

• High-Level Automation: Siemens PLC + HMI touchscreen for easy control and monitoring.

• Efficient Cooling & Sizing: Vacuum calibration and multi-stage spray cooling ensure dimensional accuracy.

• Flexible Cutting System: Choose from chipless, planetary, or saw cutters based on pipe size.

• Low Energy Consumption: Designed with energy-saving motors and temperature-controlled zones.

3.Typical Applications

• Municipal water supply systems

• Natural gas and compressed air pipelines

• Electrical and fiber optic cable conduit

• Agricultural irrigation systems

• Industrial fluid transport

4.Why Choose QH Machinery?

• 15+ years of experience in pipe extrusion machinery manufacturing

• Exported to 50+ countries with stable performance in real working sites

• CE/ISO certified factory with full QC inspection

• Engineers available for overseas installation and commissioning

• 24/7 online support and fast delivery of spare parts

Product Data

Equipment list

MAIN EQUIPMENT
NO.	Description	Qty
1	Automatic feeding system	1 set
2	Single screw extruder	1 set
3	Co-extruder for marking line	1 set
4	Mould and die head and sizing sleeve	1 set
5	Vacuum water cooling tank	1 set
6	Spray water cooling tank	1 set
7	Traction machine	1 set
8	Chip free cutting machine	1 set
9	Automatic unloading rack	1 set
10	Winding machine	1 set
ACCESSORY EQUIPMENT(optional)
11	Resin high speed mixer and cooling mixer	1 set
12	Laser printing machine	1 set
13	Water cooling chilling machine	1 set
14	Crusher	1 set
15	Meter weight controller	1 set

SAMPLE DISPLAY

model	pipe diameter range(mm)	power(kw)	output(kg/h)	screw diameter(mm)
SJ-65/33	16-63	45	150	65
SJ-75/33	20-110	55	180	75
SJ-90/33	50-200	90	250	90
SJ-65/38	75-250	110	350	65
SJ-75/38	110-315	160	500	75
SJ-120×38	315-630	280	1200	120
