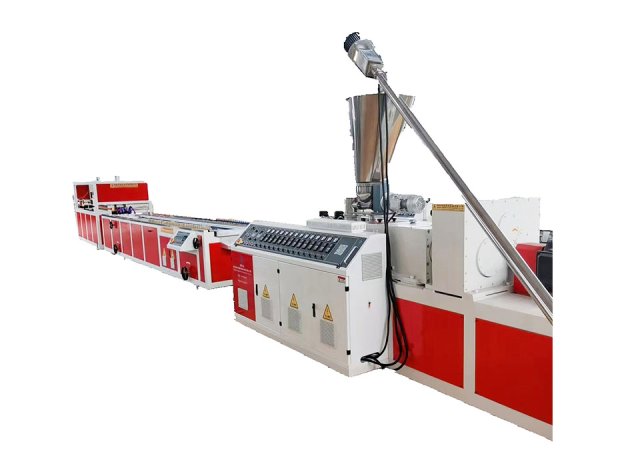

Automatic PVC Profile Producing Machine

Product Description:

The Automatic PVC Profile Producing Machine is developed for manufacturers seeking consistent quality and operational efficiency. Its integrated servo control, advanced screw-barrel design, and automatic haul-off system make it suitable for complex profile geometries. The basic concept of profile extrusion is of hollow, compartmented or filled profiles or different combinations of these. In manufacturing profiles such as sealing strips for windows, refrigerators and car doors, as well as furniture part, window profiles, light panels, skirting boards and all kinds of building profiles, particularly high outputs with improved product quality are achieved.

Add To Cart Inquire Now

Product Details

THE WHOLE PP PE PROFILE PLASTIC EXTRUSION MACHINERY LINE

CONICAL TWIN SCREW EXTRUDER

Conical twin screw extruder is a kind of high efficiency mixing and extrusion equipment. This extruder has the advantages of small shear rate, uniform plasticizing, stable production, high output, long service life, etc.

VACUUM FORMING TABLE

The vacuum shaping table is an indispensable auxiliary machine in the PVC profile extrusion production line, used for shaping and cooling PVC profile products.

According to the requirements of PVC profile products, it is designed with different lengths, different numbers of vacuum pumps and water pumps, and different powers, and can be adjusted in three dimensions.

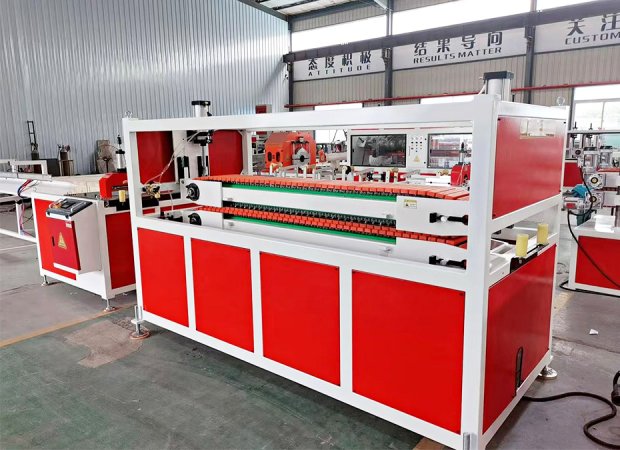

DOUBLE TRACK BELT TRACTION MACHINE

Double belt traction mode is adopted, with upper and lower Timing belt traction. Adopting stepless frequency conversion speed regulation, the traction speed is uniform. Low noise, compact structure, and beautiful appearance. The gear part is equipped with a protective cover, and the traction part is equipped with a protective device and warning signs.

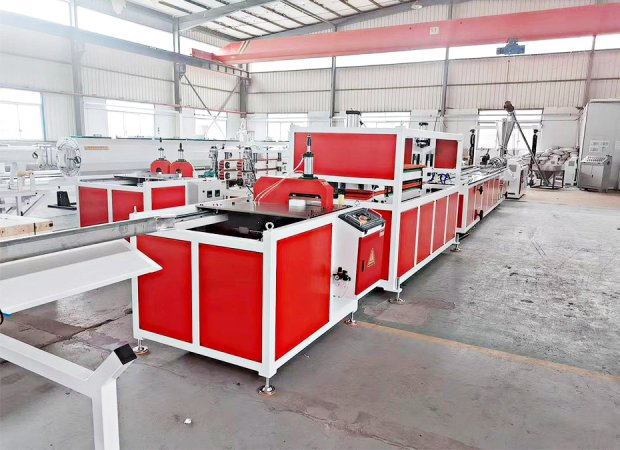

CUTTING MACHINE

Motor power: 2.2kw

Alloy saw blade: φ350mm

Cutting walk length:600mm

Automatic cutting effective range:0-200mm

AUTOMATIC UNLOADING RACK

Pneumalock unloading: 50*100 air cylinder

Air pressure： 0.5MPa

Length: 6000mm

MOLD&MOLDING MOLD&SINK

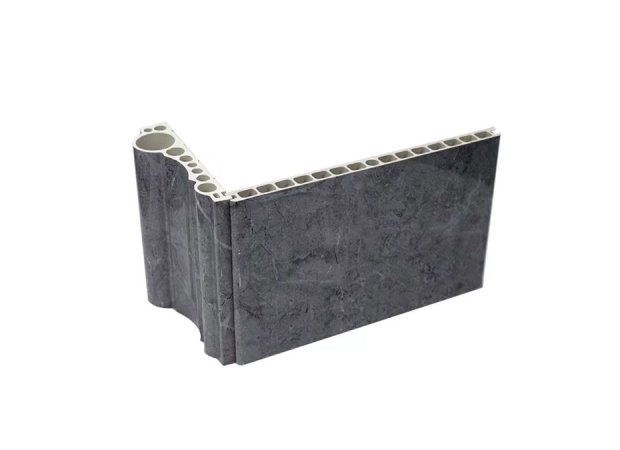

We can make different shape of profile mold according to customer's drawing.

The molds can be used in widely industries, such as window, door, elevator, electronics, auto parts and etc.

Product Data

Equipment list

MAIN EQUIPMENT
NO.	Description	Qty
1	Automatic feeding system	1 set
2	Conical twin screw extruder	1 set
3	Vacuum forming table	1 set
4	Double track belt traction machine	1 set
5	Cutting machine	1 set
6	Automatic unloading rack	1 set
7	Mold + molding mold + sink	1 set
ACCESSORY EQUIPMENT(optional)
8	Resin high speed mixer and cooling mixer	1 set
9	Water cooling chilling machine	1 set
10	Crusher	1 set
11	Milling machine	1 set

model	profile size(mm)	power(kw)	output(kg/h)	screw diameter(mm)
SJ-65/33	16-63	45	150	65
SJ-75/33	20-110	55	180	75
SJ90/33	50-200	90	250	90
SJ65/38	75-250	110	350	65
SJ75/38	110-315	160	500	75
SJ90/38	315-630	200	700	90
