Qinghang TPE SHEET Extrusion Machinery

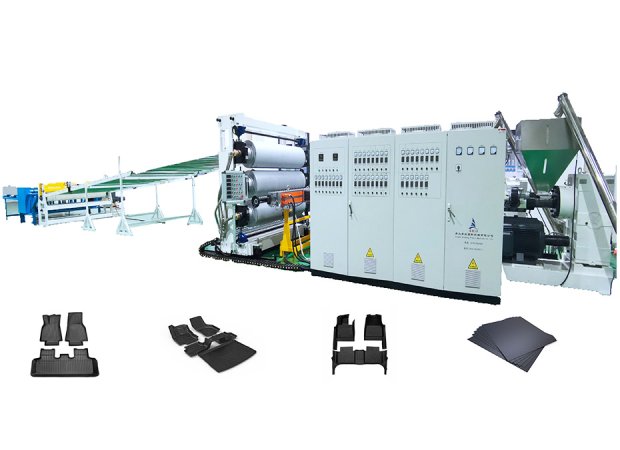

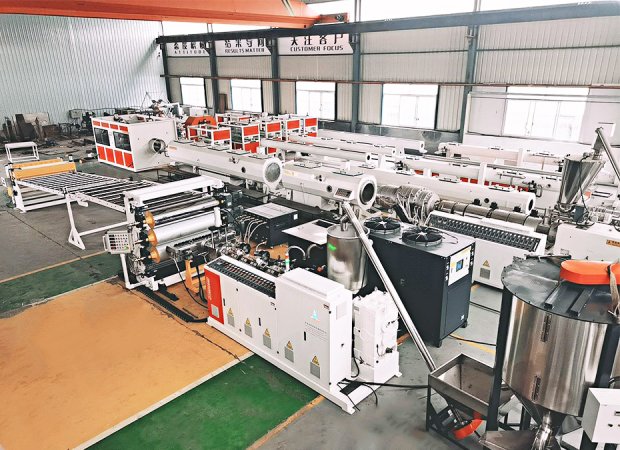

THE WHOLE PP PE SHEET PLASTIC EXTRUSION MACHINERY LINE

SINGLE/DOUBLE-SCREW EXTRUDER

The high-efficiency single screw extruder adopts a two-stage overall design, strengthening the plasticizing function, ensuring high-speed, high-performance, and stable extrusion. The special barrier comprehensive mixing design ensures the mixing effect of the material, and the high shear and low melting plasticizing temperature ensures the high-performance, low-temperature, and low-pressure metering extrusion of the material.
We also have double screw extruder for material PVC, PC and etc.

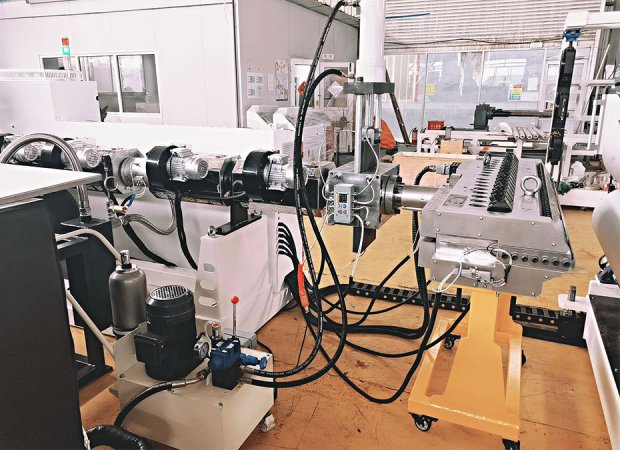

HYDRAULIC SCREEN CHANGER

Hydraulic pump power:2.2kw with air reservoir heat zone: 4kw stainless steel heating rod temperature measuring element: Pt-100 platinum resistor Omron mold material: the fuselage is made of whole alloy steel and the moving metal plate is made of carburized steel.

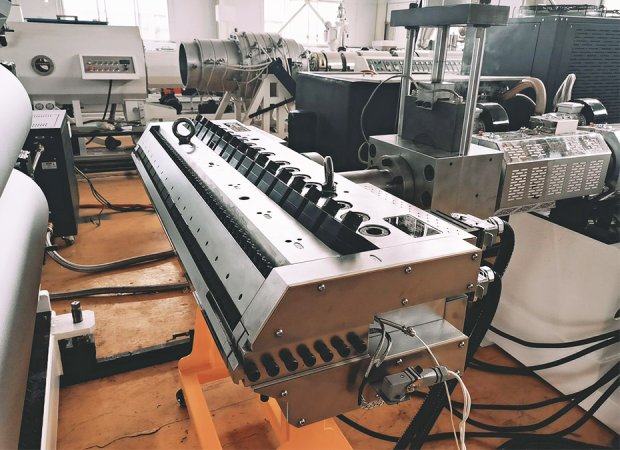

HANGER TYPE HOLLOW LATTICE PLATE MOLD

The clothes rack type co extrusion extrusion mold can improve product quality, reduce natural irregular flow, and enable various plastic polymers to be extruded and continuously stable.

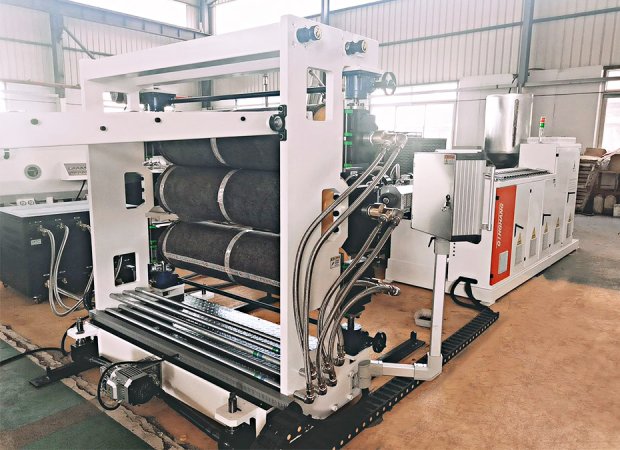

THREE ROLLER CALENDER

The working principle of three-roller calender is to put the material into the middle roller of the calender, and then the upper and lower rollers press the material into the required shape according to certain pressure and speed. The pressure between the upper and lower rollers can be controlled by changing the distance between the two rollers. Generally, the upper roller rotates and the lower roller is stationary, and the middle roller rotates at the same time to ensure the uniformity of the rolled material.

MODULE TEMPERATURE REGULATOR

The function of a mold temperature machine is to heat or cool the mold and maintain its working temperature, ensuring stable quality of injection molded parts and optimizing processing time.

There are two types of mold temperature machines: water temperature machine and oil temperature machine.

TRACTION SLOW COOLING BRACKET

bracket length:8000mm

roller diameter: Ø76mm

thickness: 2mm   stainless steel

roller length:1400mm

cutting edge cutting device the blade is cut up and down. the blade cutting width can be adjusted freely

effective cutting width: 1200mm

manual adjustment

blade qty: 2pcs

TRACTION MACHINE

rubber pull roll diameter: ￠220mm

ength: 1400mm

power: 2.2kw

speed adjustment form: frequency control Powtran two groups of cots, pneumatic cylinder compression

ACROSS CUTTING MACHINE

This machine has a high degree of automation, simple operation, low noise, and a good safety device. The automatic lifting of the feeding roller device is designed with a humanized design, making it faster and more efficient in the cutting process, making it durable and wear-resistant.
